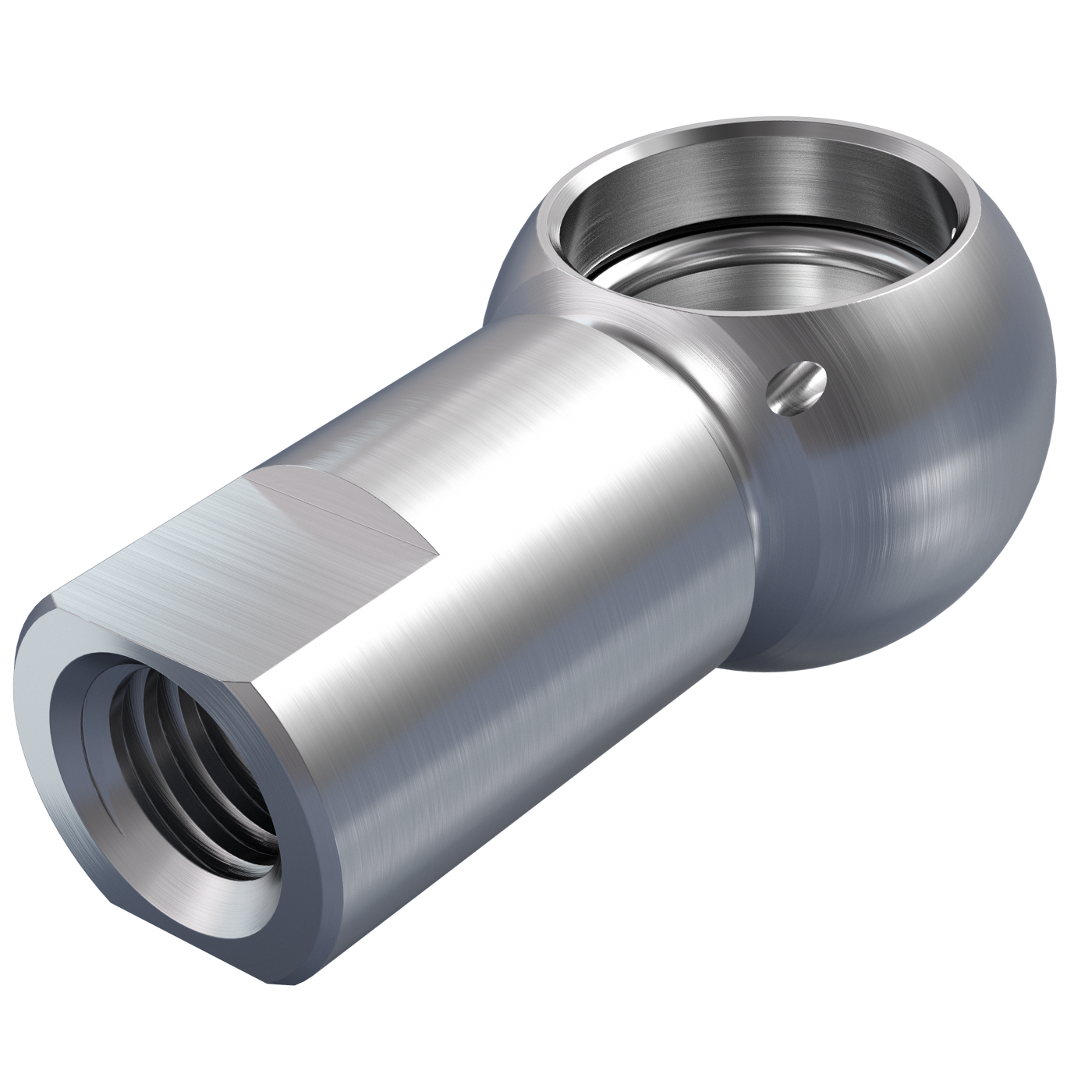

Ball socket similar to DIN 71805 with spanner surface B 16 M12 Stainless steel A4 quality
with snap ring and groove for circlip
* code for thread: regular thread = no code, regular thread left-handed = LH, fine-pitch thread = FG
货号
10 03 0012 9016/4404
标识符
Ball socket similar to DIN 71805 form B with spanner surface
Größe
B 16 M12
材料组
不锈钢 A4 质量
表面
明亮
d1
16
d1 Tolerance
H9
d2*
M12 x 1,75
螺纹版
常规右螺纹
d3
16
a ±0,3
35
e min.
15,5
sw1
13
Mass (kg) per piece
0,049
材料
Stainless steel 1.4404 (X2CrNiMo17-12-2)
Snap ring: stainless steel
