Spring cotter pins similar to DIN 11024

1 个评论 since 21.06.2021

立即询问
您的联系人：Daniel Fleuchaus +49 9345/670-143

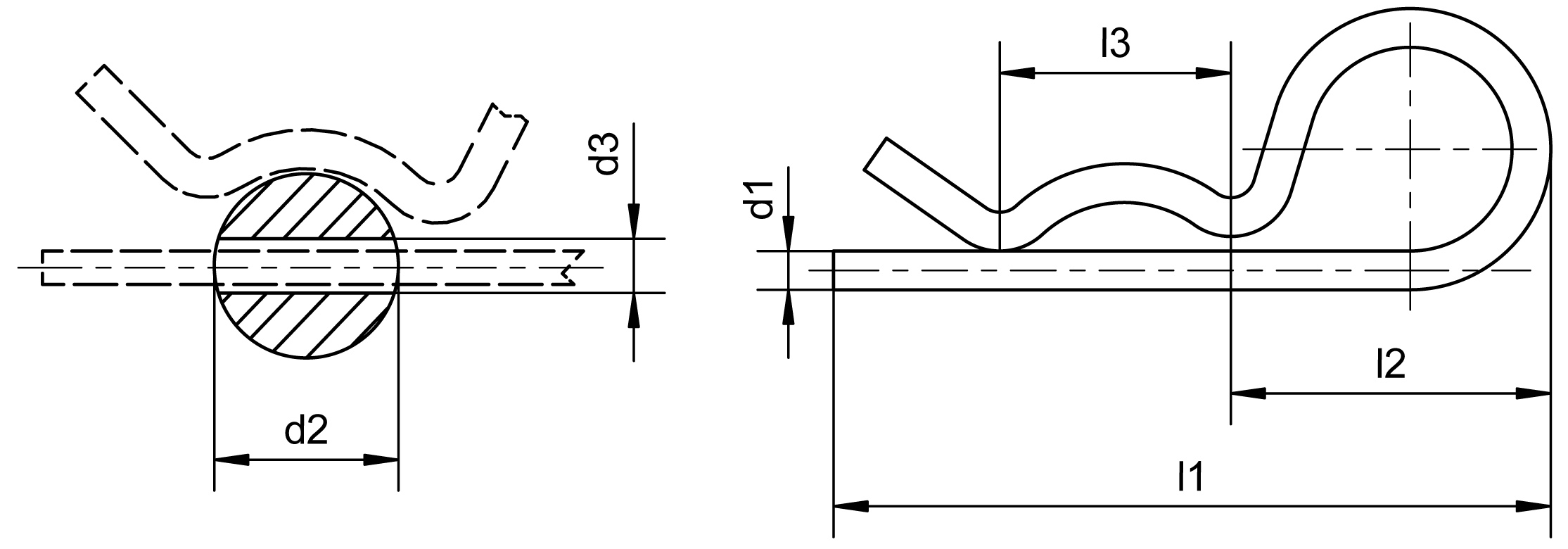

Spring cotter pins similar to DIN 11024 - Dimensional drawing

欲查找所需货品，您可任选不同筛选标准，或在表格顶部搜索文本或文本和货号。
欲再次取消筛选器设置，请单击表格下方的“清空”按钮。
欲显示产品详细信息和 3D 模型，可单击与所需货品对应的行。

商品信息 "Spring cotter pins similar to DIN 11024"

1. Product description

Spring cotter pins or spring pins, similar to DIN 11024, represent an indispensable retainer in mechanical linking technology. Spring cotter pins similar to DIN 11024 are part of detachable connections in the field of machine elements and serve as self-locking elements. They are characterized by their special design in the form of a double spiral, which not only allows practical handling but also ensures reliable and robust retaining of bolts and axles in various applications. These spring cotter pins are designed to provide a quick and efficient solution for both stationary and dynamic connections, ensuring secure fastening against unintentional loosening under vibration or movement.

Made from high-quality materials, these spring cotter pins offer an impressive combination of elasticity and strength. This allows them to adapt to the loads and mechanical forces to which they are subjected, without losing their structural integrity. The selection of materials, such as high-quality spring steel wire or stainless steel, contributes to the product's corrosion resistance and longevity, which is especially important in harsh environments or under extreme conditions.

Their versatility is highlighted by a range of sizes and designs specifically aimed at meeting a wide range of application requirements. This ensures that there is a suitable solution for almost any fastening and retaining task. The design of the spring cotter pins promotes intuitive use, allowing these retainers to be quickly mounted or dismounted without the need for special tools. This significantly contributes to increased efficiency and reduced assembly times, making them a popular solution in industry and crafts.

2. Product details

Size: 1,5 – 8

Material group: Steel or stainless steel

Surface: bright or electr. galvanized white

3. Application Areas & Compatibility

The spring cotter pins similar to DIN 11024 are used in an impressive variety of industrial and technical sectors. Due to their innovative and practical design, these Spring cotter pins are ideally suited for use in mechanical engineering, automotive engineering, agricultural engineering, and beyond in almost all areas where reliable and quick securing of bolts, shafts, and axles is required.

The advantage of the design of a spring cotter pin lies in its ability, through its unique double coiled ends that expand upon insertion, to maintain a tight fit and thus prevent accidental loosening. Compared to other cotter pins, such as those according to DIN 94, spring cotter pins ensure a more robust locking mechanism through their spring functionality, which allows for easy installation and extraction without compromising strength.

Mechanical and plant engineering: Almost every machine or plant consists of a multitude of components that perform movements during operation or are subject to movable loads. This dynamic requires connections that are not only strong and reliable but also can withstand vibrations and other mechanical influences. This is where spring cotter pins come into play, by offering a permanent and secure lock that allows for easy assembly and disassembly without impairing the stability of the connection. The use of spring cotter pins in mechanical and plant engineering supports the longevity and reliability of critical connections. Through their design, spring cotter pins prevent nuts and bolts from loosening due to vibrations or rotational movements. This is particularly important in areas where regular maintenance is difficult or time-consuming and where unintended loosening could lead to failures or even safety hazards.

Agriculture: There, spring cotter pins are used to secure various removable components of agricultural machinery, from tractors to combine harvesters. The quick-release function of the pins provides efficiency and safety in the fast-paced, often time-critical agricultural environment. Their durability and corrosion resistance guarantee longevity despite the challenging outdoor conditions prevalent in agriculture.

Construction and architecture: In the construction of buildings, bridges, or scaffolding, the materials and construction elements used are continuously exposed to mechanical stress and environmental influences. In this context, spring cotter pins are frequently used to securely fasten critical components such as safety cables, scaffold connections, and other load-bearing elements. Their use ensures that these connections remain resilient and secure even under conditions of stress, weather, and time.

4. Advantages and Benefits

High Safety and reliability: Spring cotter pins provide a robust and secure connection, protected against accidental loosening due to vibrations or external forces. This enhances the operational safety of machines, vehicles, and systems, especially in critical applications where the reliability of connecting elements is of utmost importance.

Easy and quick assembly and disassembly: A significant advantage of spring cotter pins is their user-friendly design, which allows for quick and tool-free assembly and disassembly. This saves time and effort during installation, maintenance, and repair work, thereby increasing efficiency.

Wide range of applications: Thanks to the variety of sizes, constructions, and materials, spring cotter pins can be used in a wide range of applications. They are thus a flexible solution for various industrial sectors.

Durability and resilience: The material of the spring cotter pin is crucial for its strength, flexibility, and corrosion resistance. Commonly used materials include spring steel wire, also stainless steel, which offers excellent durability and rust resistance.

Cost Efficiency: Due to their longevity and reduced maintenance requirements, spring cotter pins offer a cost-efficient solution for connecting technology. The saving of time and resources during assembly and maintenance leads to a reduction in overall operating costs.

Adaptability: Overall, spring cotter pins are an excellent choice for users who value reliability, efficiency, and flexibility. Their broad range of advantages and benefits makes them an essential component in modern connection technology, contributing to increased productivity and ensuring functionality in numerous areas.

5. Assembly and Installation

The assembly and installation of spring cotter pins, similar to DIN 11024, are characterized by their user-friendly design and ease of use.

Step 1 - Preparation: Before starting the installation, it is important to check if the spring cotter pin is suitable and properly sized for the specific application. This includes verifying the diameter and length of the pin concerning the size and specification of the bolts, shafts, or axles to be secured. It should also be ensured that the surfaces where the spring cotter pin will be attached are free from dirt and damage to guarantee an optimal connection.

Step 2: -Inserting the spring cotter pin: The spring cotter pin is inserted into the designated hole of the element (e.g., a bolt, shaft, or axle). This is usually done manually by hand without the need for special tools. Thanks to the flexible design of the spring cotter pin, it is easily inserted into the hole. As it advances, the spring cotter pin bends until it returns to its original shape and anchors firmly in the hole.

Step 3 - Checking the security: After the spring cotter pin has been inserted, it is crucial to check if it is correctly and securely seated. Proper installation is characterized by a snug fit where the spring cotter pin cannot be unintentionally pulled out or loosened by vibrations. This check prevents potential safety risks and ensures reliable fastening.

Step 4 - Maintenance and inspection: Although spring cotter pins provide a permanent and secure connection, it is advisable to conduct regular inspections, especially in applications exposed to extreme conditions or high loads. This prevents premature wear and ensures long-term functionality and safety.

Adaptability: Overall, spring cotter pins are an excellent choice for users who value reliability, efficiency, and flexibility. Their wide range of benefits makes them an indispensable component in modern connection technology, contributing to increased productivity and ensuring functionality in various fields.

6. Accessories and Extensions

Spring cotter pins similar to DIN 11024 provide valuable enhancement in their field of application when used in combination with clevises DIN 71752 / DIN ISO 8140 and the washer DIN 125 form A. This combination opens up a wide range of application possibilities in mechanical constructions and systems where flexibility and the ability to quickly adapt are crucial. The combination of spring cotter pins and clevises enables quick and secure exchange or adjustment of connecting elements without the need to completely disassemble the construction.

Additionally, spring cotter pins can be used in conjunction with protective caps to secure the ends of the pins after assembly. These caps not only provide protection against sharp edges, thereby minimizing the risk of injury, but also help prevent the ingress of dirt and moisture into the connection point, which in turn enhances the corrosion resistance of the construction.

Frequently Asked Questions (FAQ)

What is the main function of spring cotter pins similar to DIN 11024 in the field of mechanical connection technology?

Spring cotter pins serve as retainers to prevent the unintentional loosening of bolts, shafts, and axles in various applications by providing reliable and robust retaining. Their special double spiral shape enables a quick and efficient solution for stationary as well as dynamic connections.

What materials are spring cotter pins made of and why?

Spring cotter pins are made from high-quality spring steel wire from steel and stainless steel. This material selection offers a combination of elasticity and strength, allowing adaptation to mechanical stresses without losing structural integrity. Additionally, these materials contribute to the corrosion resistance and durability of the product, which is especially important in harsh environments.

How are spring cotter pins installed and what advantages does this method offer?

The installation of spring cotter pins is done by simply inserting the pin into the designated hole of an element (e.g., a bolt, a shaft, or an axle), with the flexible design of the spring cotter pin supporting tool-free assembly and disassembly. A significant advantage of this process is the speed and user-friendliness of the assembly, which saves time and labor, thereby increasing efficiency in installation, maintenance, and repair work.

Can spring cotter pins be reused, and if so, under what conditions?

Yes, spring cotter pins are generally designed for reuse, provided they do not show visible damage or excessive wear. Before reusing, they should be carefully inspected for bends, corrosion, or other damage. One limitation could be if the spring cotter pin was used in critical safety applications, where a reassessment of suitability based on safety regulations is necessary.

What are the most important factors when selecting a spring cotter pin for a specific application?

When selecting a spring cotter pin, several factors must be considered, including the size and type of element to be secured (axle, shaft, bolt), environmental conditions (corrosion, temperature, humidity), the required strength and elasticity of the material, and the accessibility for installation and maintenance. The specific requirements of the application determine the optimal type and material of the spring cotter pin to ensure a durable and secure connection.

How does the choice of material for spring cotter pins affect their longevity and performance?

The choice of material has a significant impact on the lifespan and performance of spring cotter pins. For instance, stainless steel offers excellent corrosion resistance, making it more suitable for applications in corrosive environments or outdoors. Spring steel might be preferred in applications requiring higher mechanical stress due to its higher spring rate and strength. Choosing the right material ensures a balance between the needed elasticity and strength to maintain performance throughout the entire lifespan.

Can spring cotter pins be used in combination with other retainers?

Yes, spring cotter pins can be used in combination with other securing elements such as washers DIN 125 form A to further enhance connection security. The combined use of these elements can be beneficial in certain applications to provide extra safety against loosening under vibration or shock loads. However, it is important to check the compatibility and installation of these elements to ensure they do not compromise the mechanical integrity and performance of the overall connection.

Are there differences in the installation of spring cotter pins depending on the material?

The basic assembly technique of spring cotter pins remains largely the same regardless of the material, as the design and function are identical. However, the material of a spring cotter pin can indirectly affect the assembly by determining factors such as the flexibility of the pin and the force required to insert or remove it. Stainless steel spring cotter pins might be slightly harder to insert or remove in certain environments due to their higher corrosion resistance and strength compared to steel ones, but the basic hand assembly process does not change.

Can the effectiveness of spring cotter pins be affected in extreme temperature environments?

Yes, extreme temperatures can affect the effectiveness of spring cotter pins, especially if the material of the spring cotter pin is not suitable for such conditions. At very low temperatures, the material can become brittle, posing a risk of breaking. At high temperatures, the material can become softer or lose its elastic properties, which can impair its safety function. It is therefore important to choose materials specifically for the intended operating temperatures.

How does surface treatment affect the performance and longevity of spring cotter pins?

The surface treatment of spring cotter pins, such as galvanizing or coating, can significantly improve their corrosion resistance, wear resistance, and overall lifespan. Such treatments protect the material from the harmful effects of moisture, salts, and other corrosive substances. This is especially important in applications where moisture or chemical exposure is prevalent. Proper surface treatment can thus reduce maintenance frequency and lower overall operating costs.

What is the difference between spring cotter pins similar to DIN 11024 and cotter pins DIN 94?

Spring cotter pin similar to DIN 11024 and cotter pins according to DIN 94 are both mechanical fasteners primarily used for securing pin connections. Cotter pins DIN 94 are simple, straight metal pins with a split end that are pushed through a pre-drilled hole, and their ends are then bent apart to prevent axial movement. Cotter pins are simpler in their application and serve as permanent or semi-permanent fasteners. Cotter pins are often used in applications where the connection is rarely disconnected. Their removal requires bending and often replacing the cotter pin, making them less suitable for applications with frequent disassembly.
