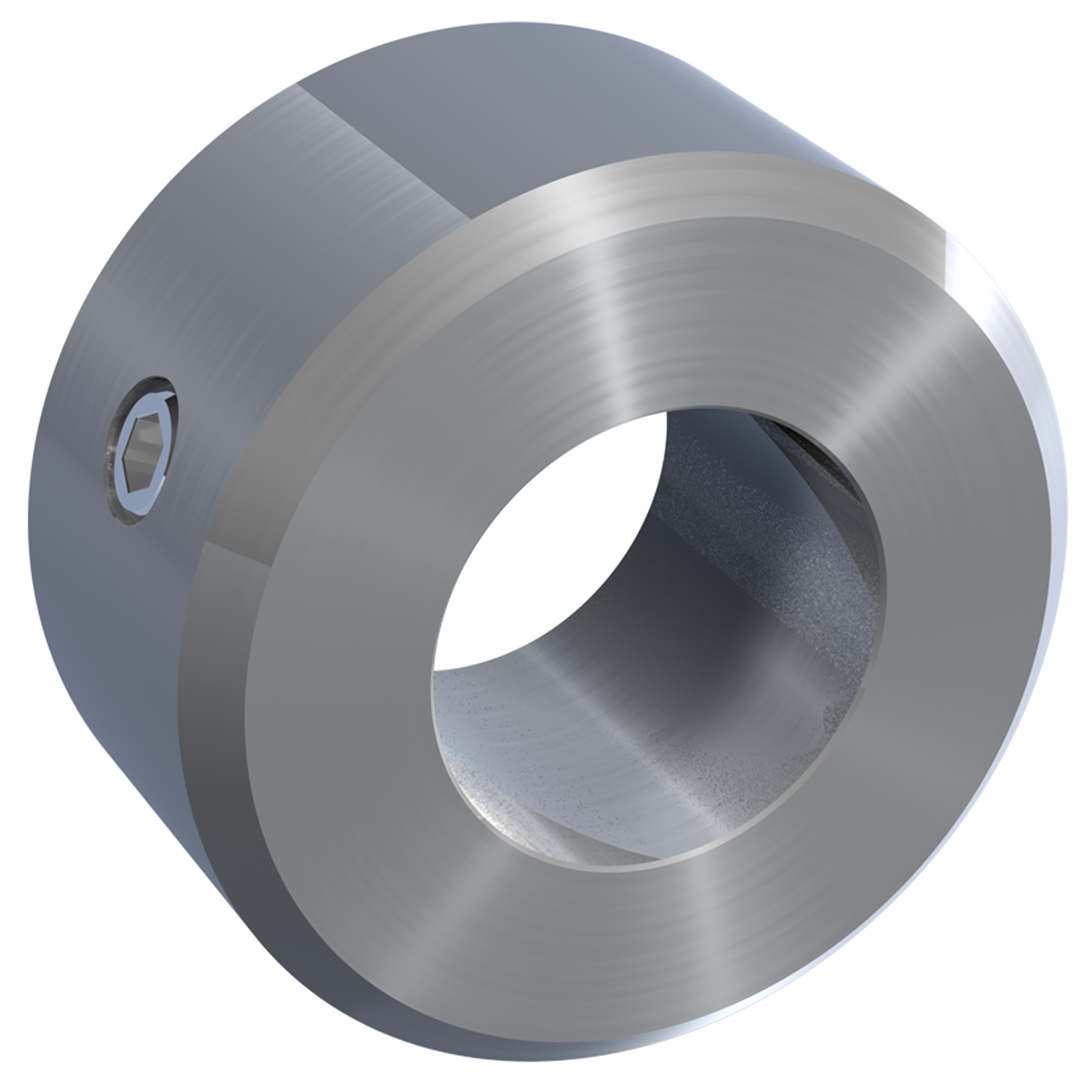

Set collar DIN 705 form A 55 Steel electr. galvanised white
1 The specified tolerances only apply to the "untreated" version. Other tolerances must be specified when ordering.
2 The Row 1 nominal diameters should preferably be used above all for new designs.
3 The nominal diameters of row 2 contain sizes that are currently still needed in practice, but should no longer be used in new structures.
* Unlike grooved and taper pins, setscrews (up to M 10 with slot to DIN EN 27434 and above M 12 with internal hexagon to DIN EN ISO 4027) are an integral part of the set collar (screwed).
** Instead of grooved pins to DIN EN ISO 8744, it is also possible to use dowel pins to DIN EN ISO 8752 or spiral dowel pins to DIN EN ISO 8750.
*** If taper pins to DIN EN 22339 are used, the hole must be reamed during assembly with a 1:50 taper.
2 The Row 1 nominal diameters should preferably be used above all for new designs.
3 The nominal diameters of row 2 contain sizes that are currently still needed in practice, but should no longer be used in new structures.
* Unlike grooved and taper pins, setscrews (up to M 10 with slot to DIN EN 27434 and above M 12 with internal hexagon to DIN EN ISO 4027) are an integral part of the set collar (screwed).
** Instead of grooved pins to DIN EN ISO 8744, it is also possible to use dowel pins to DIN EN ISO 8752 or spiral dowel pins to DIN EN ISO 8750.
*** If taper pins to DIN EN 22339 are used, the hole must be reamed during assembly with a 1:50 taper.
货号
10 36 0000 0550A/013
标识符
Set collar DIN 705 form A
Größe
A 55
材料组
Steel
表面
electr. galvanised white
d1 Reihe 1²
-
d1 Reihe 2³
55
d1 Toleranz¹
H8
b js14
18
d2 h13
80
d3
M10 x 1,5
Gewindestift*
M10 x 16
Anzahl der Gewindestifte
1
Gewicht (kg) per 100 Stück
37,3
材料
Undercut steel 1.0718 (11SMnPb30+C) or equivalent material
