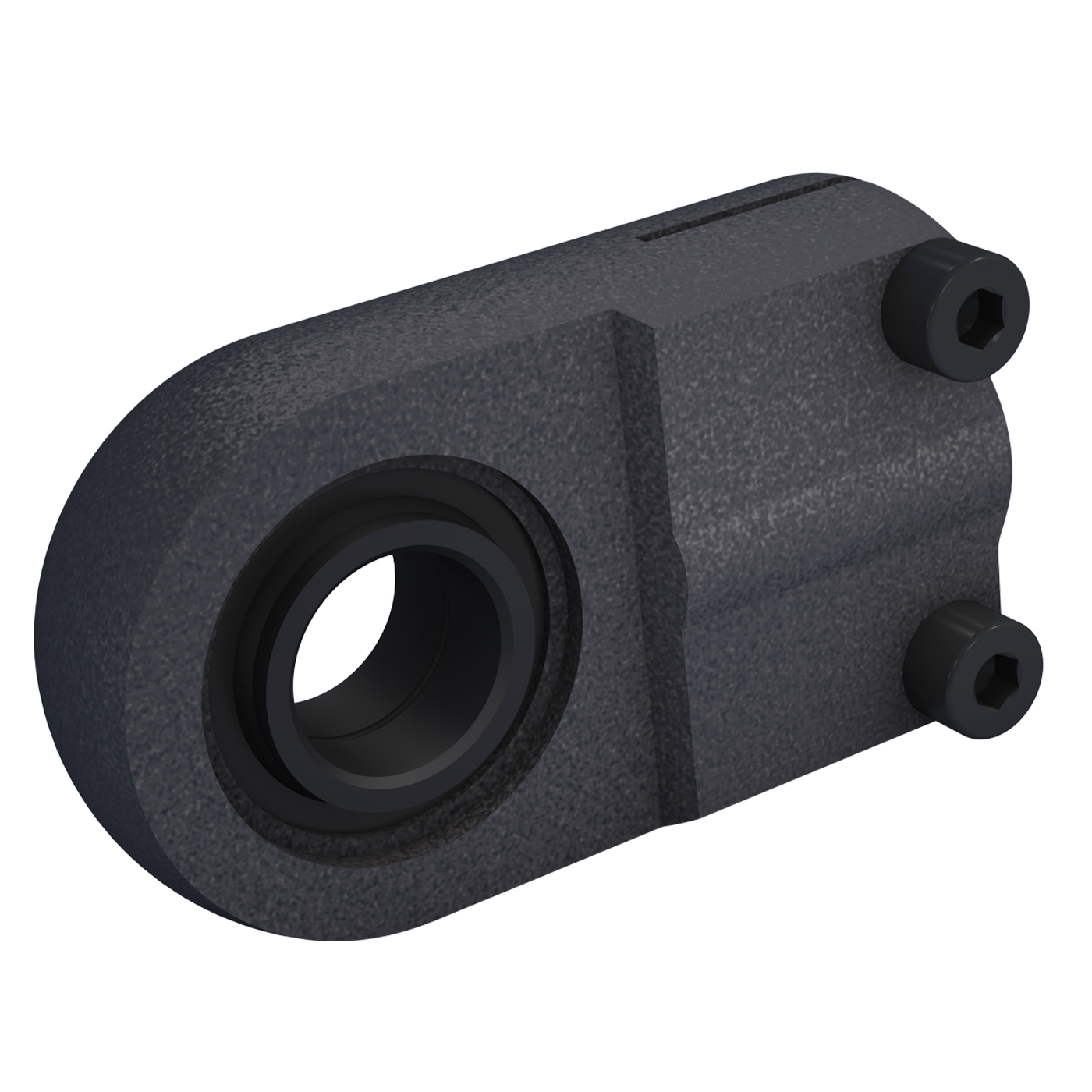

Rod end hydraulic DIN 24338 / complies in part with ISO 6982 20 M16FG Steel bright
can be regreased, with wide bearing according CETOP recommendation RP 58H for standard hydraulic-ylinders
1 max. torque of the screw
2 lubrication groove only in the bearing shell
Attention: size and thread are different; able to jam with screws DIN 912-8.8, position and quantity of the screws are in responsibility of the manufacturer
connection dimensions according to DIN 24333-24336 and ISO 6020/1, ISO 6022
2 lubrication groove only in the bearing shell
Attention: size and thread are different; able to jam with screws DIN 912-8.8, position and quantity of the screws are in responsibility of the manufacturer
connection dimensions according to DIN 24333-24336 and ISO 6020/1, ISO 6022
货号
16 94 6982 1016/001
标识符
Rod end hydraulic DIN 24338 / complies in part with ISO 6982
Größe
20 M16FG
材料组
Steel
表面
bright
材料
Housing: up to size 63 thermal treatment steel 1.0503 (C45), forged
from size 70 spherical cast iron GS400
Bearing shell: ball bearing steel 1.3505 (100Cr6), hardened, grinded, phosphatised, molybdenite disulphide treatment
Internal ring: ball bearing steel 1.3505 (100Cr6), hardened, grinded, phosphatised, molybdenite disulphide treatment
d
20
A
17
B
20
d2
47
d3
M16 x 1,5 FG
螺纹版
Fine-pitch thread right
h1
52
l3
23
l4
77
D
47
E
25
F
19
Torque Nm¹
25
Static basic load rating C0 (kN)
48
Dynamic load rating C (kN)
30
Angle of misalignment a°
4
Bearing radial tolerance in mm min. - max.
0,030 - 0,082
Mass (g) per piece
350
润滑
from size 16 with hydraulic lubricating nipple DIN 71412
Rod end_Pivoting bearing
Rod end hydraulic
Series
G series
Maintenance
needs maintenance
Thread
Female thread
Threaded bolt
No
Sealing
No
Suitable for clevises
No
