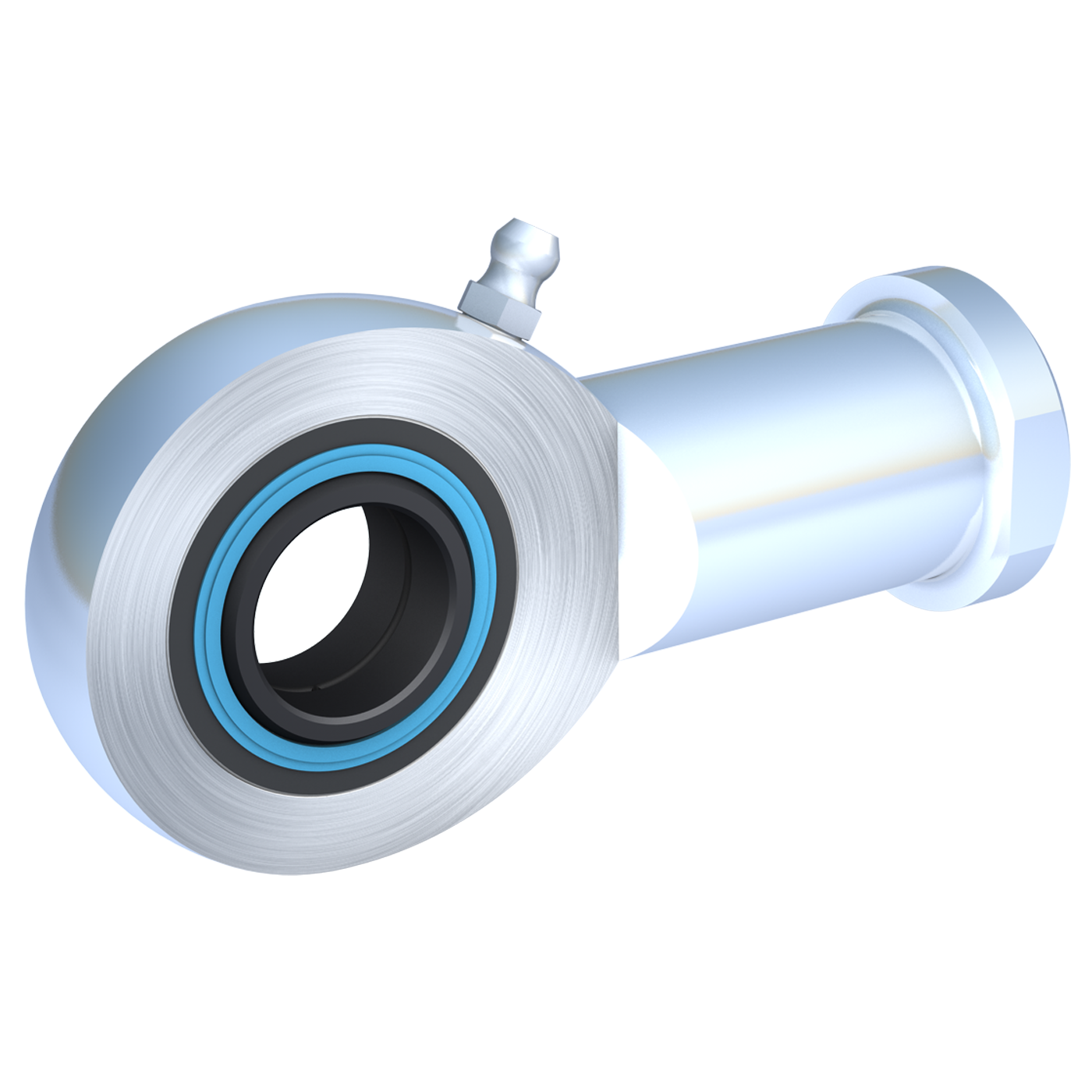

Rod end DIN ISO 12240-4 E series steel/steel version with sealing female thread 30 M30FG Steel galv.
can be regreased, suitable for high alternating loads货号
18 83 6481 1030/013
标识符
Rod end DIN ISO 12240-4 (DIN 648) E series steel/steel version with sealing female thread
Größe
30 M30FG
材料组
Steel
表面
galvanised
材料
Housing: steel, forged, galvanised
Bearing: steel/steel bearing needs maintenance (mbo standard 90)
from size 15 deliverable with double face sealing (mbo standard 83, order number: .. 83 6481 ...)
d
30
d Tolerance
0/ - 10μ
A
19
B
22
d1
34,2
d2
73
d3
M30 x 2 FG
螺纹版
Fine-pitch thread right
d4
40
d5
50
h1
110
l3
56
l4
146,5
sw
41
Static basic load rating C0 (kN)
124
Angle of misalignment a°
6
Bearing radial tolerance in mm min. - max.
0,030 - 0,085
Mass (g) per piece
930
润滑
from size 20, via hydraulic lubricating nipple DIN 71412; working range: -30 °C to +130 °C; initial lubrication must be performed during initial operation
Rod end_Pivoting bearing
Rod end
Series
E series (small version)
Maintenance
needs maintenance
Thread
Female thread
Threaded bolt
No
Sealing
Yes
Suitable for clevises
Yes
Temperature
-30 °C - +130 °C
