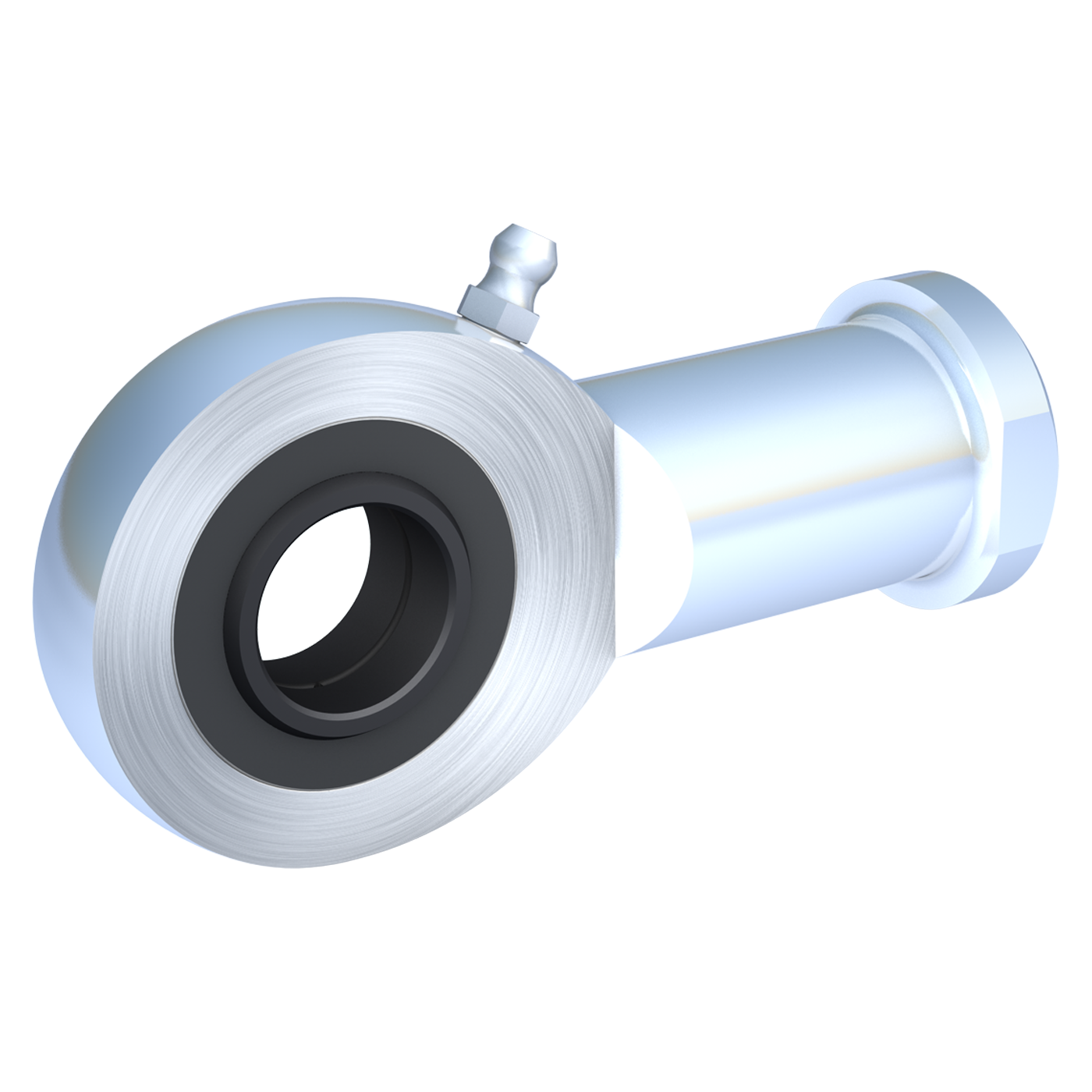

Rod end DIN ISO 12240-4 E series steel/steel version female thread 60 M52FG Steel galvanised
can be regreased, suitable for high alternating loads货号
20 82 6481 1060/013
标识符
Rod end DIN ISO 12240-4 (DIN 648) E series steel/steel version female thread
Größe
60 M52FG
材料组
Steel
表面
galvanised
材料
Housing: up to size 10 steel, lathe work, galvanised
from size 12 steel, forged, galvanised
Bearing: steel/steel bearing needs maintenance (mbo standard 89)
from size 15 deliverable with double face sealing (mbo standard 83, order number: .. 83 6481 ...)
d
60
d Tolerance
0/ - 15μ
A
38
B
44
d1
66,8
d2
135
d3
M52 x 3 FG
螺纹版
Fine-pitch thread right
d4
70
d5
88
h1
175
l3
70
l4
242,5
sw
75
Static basic load rating C0 (kN)
450
Angle of misalignment a°
6
Bearing radial tolerance in mm min. - max.
0,035 - 0,100
Mass (g) per piece
5550
润滑
from size 20, via hydraulic lubricating nipple DIN 71412; working range: -50 °C to +200 °C; initial lubrication must be performed during initial operation
Rod end_Pivoting bearing
Rod end
Series
E series (small version)
Maintenance
needs maintenance
Thread
Female thread
Threaded bolt
No
Sealing
No
Suitable for clevises
Yes
Temperature
-50 °C - +200 °C
