Rod end DIN ISO 12240-4 E series maintenance-free with sealing female thread 16 M16LH Steel galv.
suitable for high unidirectional loads货号
11 81 6481 1016/013
标识符

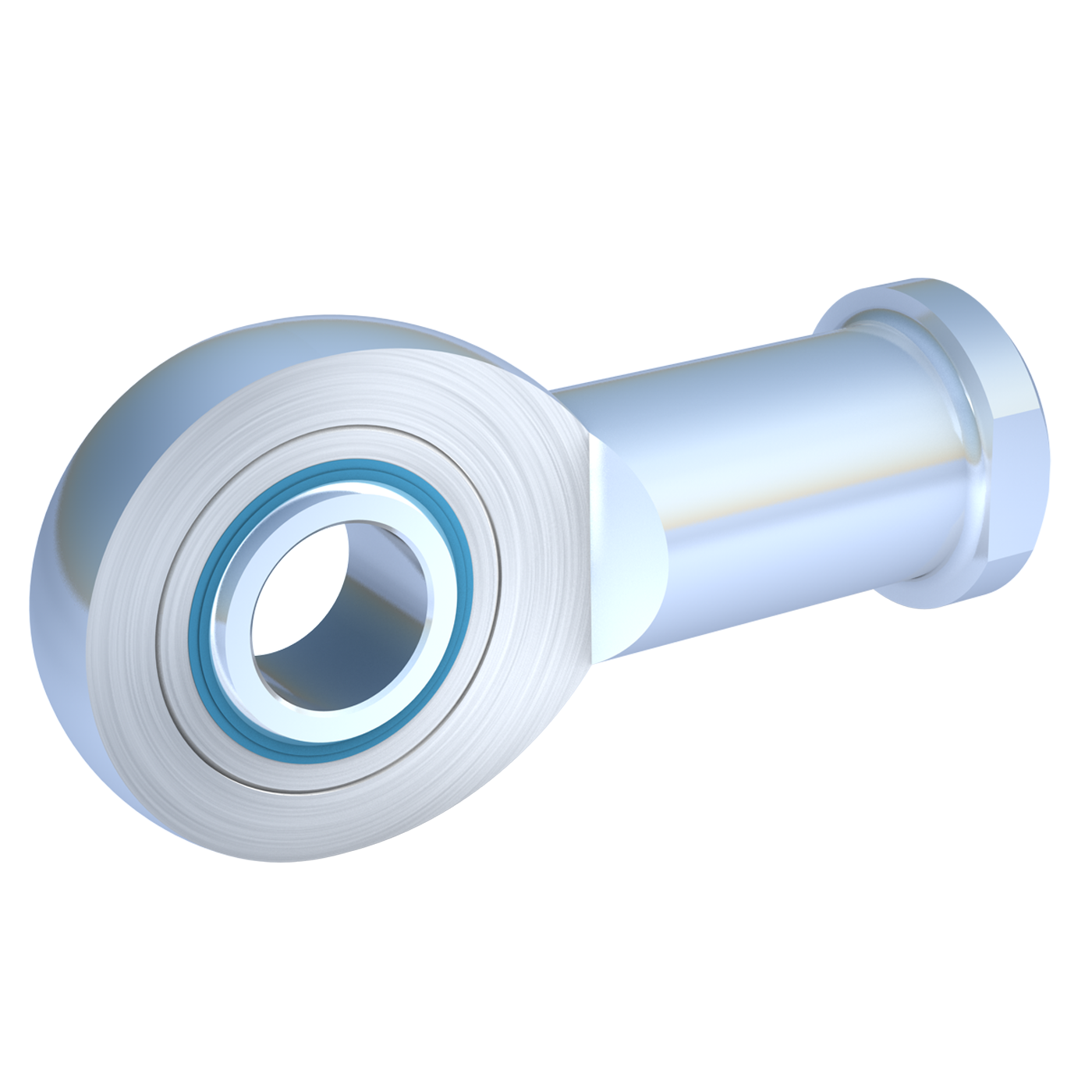

Rod end DIN ISO 12240-4 (DIN 648) E series maintenance-free version with sealing female thread
Größe
16 M16LH
材料组
Steel
表面
galvanised
材料
Housing: steel, forged, galvanised
Bearing: maintenance-free steel/PTFE bearing (mbo standard 92)
from size 15 deliverable with double face sealing (mbo standard 81, order number: .. 81 6481 ...)
from size 60 only deliverable with double face sealing (mbo standard 81)
d
16
d Tolerance
0/ - 8μ
A
11
B
14
d1
20,7
d2
46
d3
M16 x 2 LH
螺纹版
Regular thread left
d4
24
d5
30
h1
67
l3
33
l4
90
sw
27
Static basic load rating C0 (kN)
54,5
Angle of misalignment a°
10
Bearing radial tolerance in mm min. - max.
0 - 0,040
Mass (g) per piece
220
润滑
no lubrication required; the ball slides on the PTFE fabric located in the bearing shell; working range: -30 °C to +130 °C
Rod end_Pivoting bearing
Rod end
Series
E series (small version)
Maintenance
maintenance-free
Thread
Female thread
Threaded bolt
No
Sealing
Yes
Suitable for clevises
Yes
Temperature
-30 °C - +130 °C
