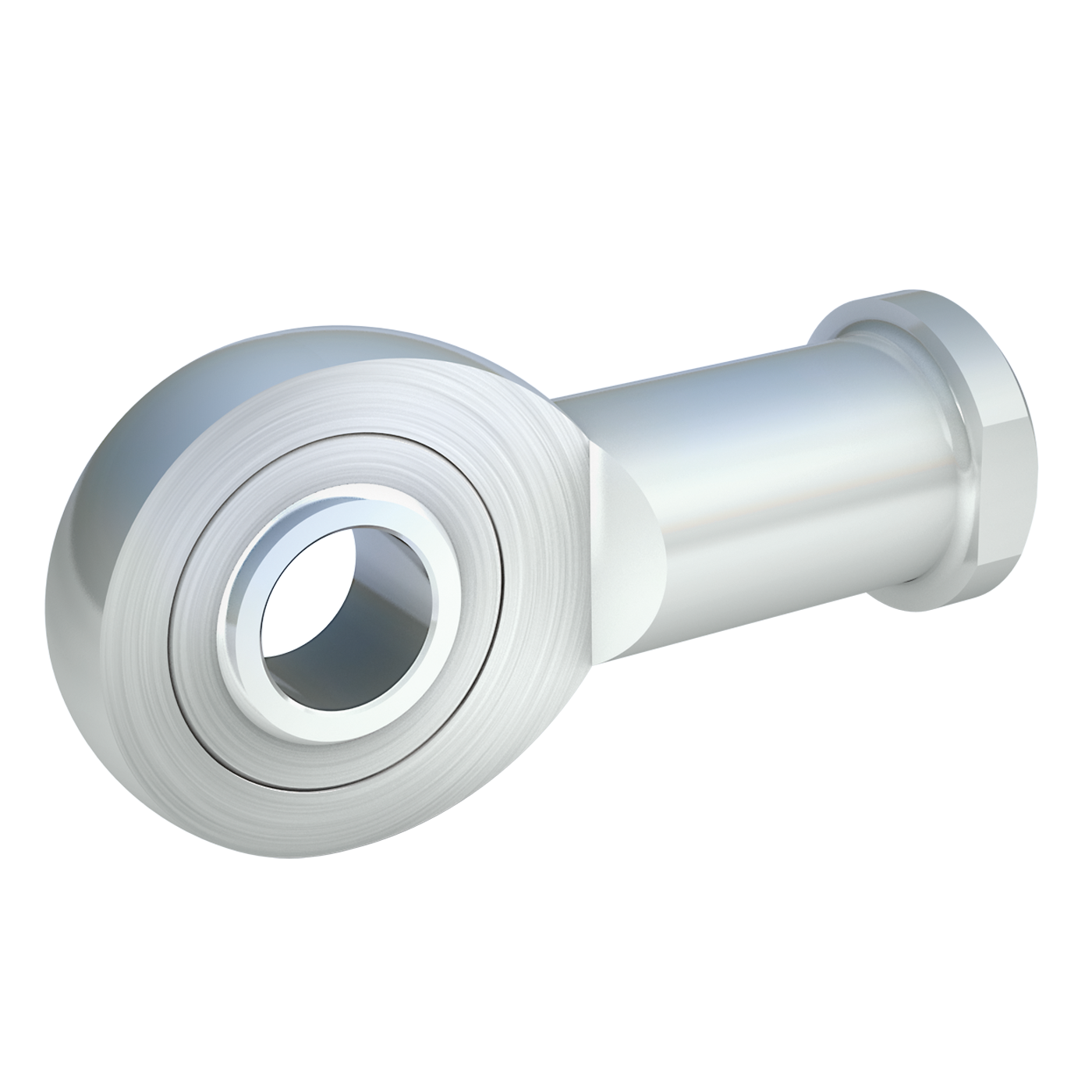

Rod end DIN ISO 12240-4 E series maintenance-free female thread 12 M12LH Steel galvanised
suitable for high unidirectional loads货号
11 80 6481 1012/013
标识符
Rod end DIN ISO 12240-4 (DIN 648) E series maintenance-free version female thread
Größe
12 M12LH
材料组
Steel
表面
galvanised
材料
Housing: up to size 10 steel, lathe work, galvanised
from size 12 steel, forged, galvanised
Bearing: maintenance-free steel/PTFE bearing (mbo standard 91)
from size 15 deliverable with double face sealing (mbo standard 81, order number: .. 81 6481 ...)
from size 60 only deliverable with double face sealing (mbo standard 81)
d
12
d Tolerance
0/ - 8μ
A
8
B
10
d1
14,9
d2
34
d3
M12 x 1,75 LH
螺纹版
Regular thread left
d4
17,5
d5
22
h1
50
l3
23
l4
67
sw
19
Static basic load rating C0 (kN)
31
Angle of misalignment a°
11
Bearing radial tolerance in mm min. - max.
0 - 0,030
Mass (g) per piece
96
润滑
no lubrication required; the ball slides on the PTFE fabric located in the bearing shell; working range: -50 °C to +150 °C; or with sealing: -30 °C to +130 °C
Rod end_Pivoting bearing
Rod end
Series
E series (small version)
Maintenance
maintenance-free
Thread
Female thread
Threaded bolt
No
Sealing
No
Suitable for clevises
Yes
Temperature
-50 °C - +150 °C
CAD file download
Format selection
