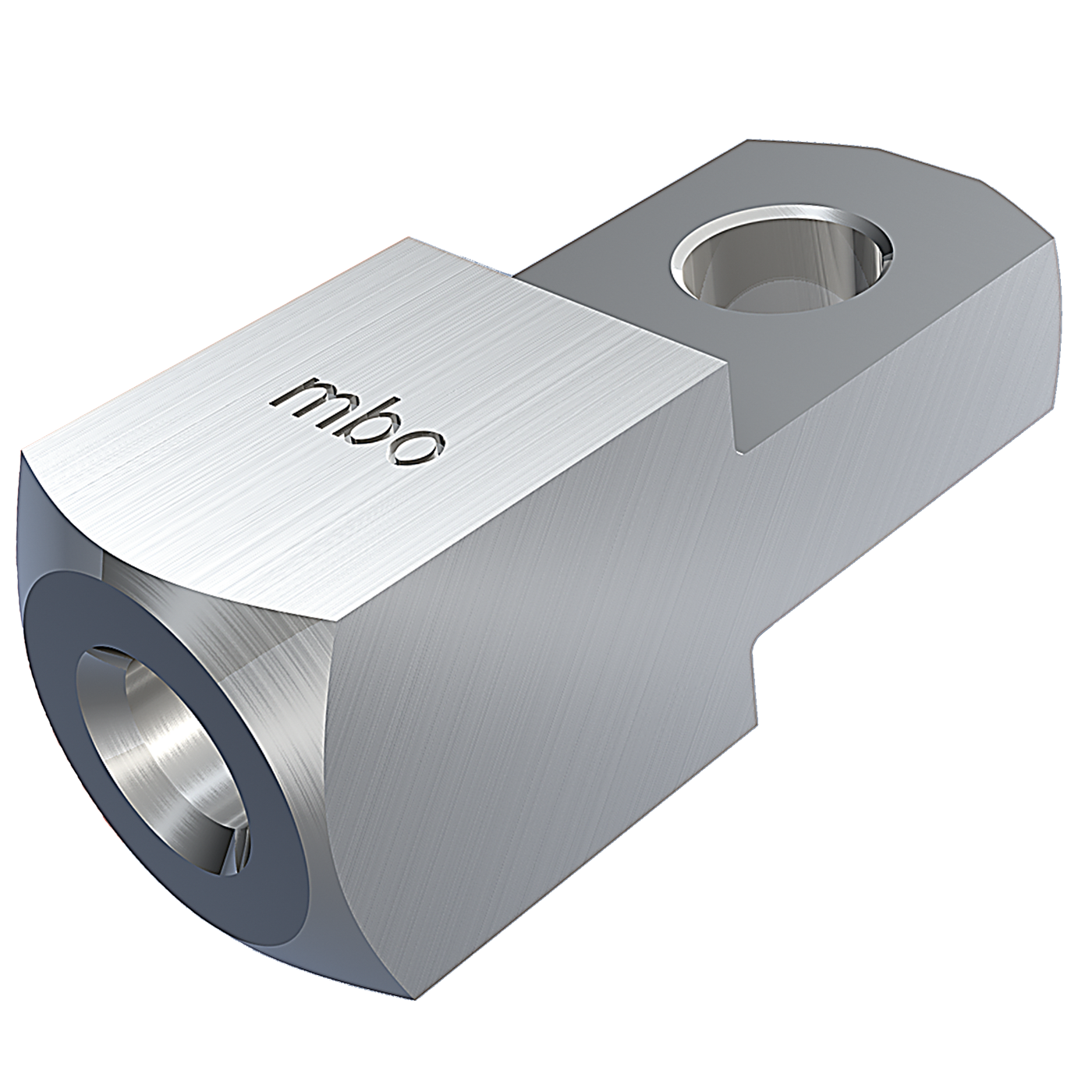

Mating piece for clevises 14x21 M14LH Steel galvanised white
1 code for thread: regular thread = no code, regular thread left-handed = LH, fine-pitch thread = FG, fine-pitch thread left-handed = FGLH
2 for semifinished products undercut steel tolerance h11 according to DIN 178
2 for semifinished products undercut steel tolerance h11 according to DIN 178
货号
11 23 0014 0021/013
标识符
Mating piece for clevises
Größe
14x21 M14LH
材料组
钢
表面
白色电镀镀锌
材料
Undercut steel 1.0715 (11SMn30) / 1.0718 (11SMnPb30)
d1
14
d1 Tolerance
H9
g ±0,5
21
a1² h11
27
a2
27
a2 Tolerance
h11
b2
14
b2 Permissible variation
-0,2
d2¹
M14 x 2 LH
螺纹版
常规左螺纹
f ±0,2
1
l1
72
l1 Tolerance
±0,5
l2
56
l2 Permissible variation
±0,3
l3
25
l4
35
l4 Tolerance
±0,2
Mass (kg) per piece
0,247
