商品信息 "角接头，类似于 DIN 71802 CS 型，带密封帽"
Angle joint with sealing cap
For problematic environmental conditions (dust, lubricants) there are special angle joints with sealing cap available. The space between ball socket and ball stud is enclosed and sealed with a sealing cap - the best protection against damage caused by environmental influences. The sealing caps are made from chloroprene and can be used in a temperature range from -30°C to +110°C (for short periods up to +140°C).
Angle joints can be supplied in all standard versions with a sealing cap and are also available in steel or stainless steel.
Frequently Asked Questions (FAQ)
What are angle joints similar to DIN 71802 form CS with sealing cap and what are they used for?
Angle joints with sealing cap serve as mechanical guide and corner connection elements and are specifically designed for problematic environmental conditions (dust, lubricants, dirt, splashing water, vapors, etc.). They are used in various fields such as mechanical engineering, vehicle construction, railway industry, agricultural and construction machinery, as well as fitness and rehabilitation technology.
What individual parts belong to the make-up of angle joints similar to DIN 71802 form CS with sealing cap?
The execution includes the following individual parts: Ball socket DIN 71805 form B, ball stud DIN 71803 form C, snap ring, sealing cap, circlip DIN 71805 form S, hex nut DIN 934 and lubricating grease.
What advantages do angle joints similar to DIN 71802 form CS with sealing cap offer?
They offer high flexibility, easy installation, robustness, durability, versatility, maintenance-friendliness, and cost efficiency. The sealing cap provides additional protection, especially for challenging environmental conditions (dust, lubricants, dirt, splashing water, vapors, etc.), as the space between the ball socket and ball stud is covered and sealed by it.
What materials are used for angle joints with sealing cap?
The angle joints are made from steel, stainless steel, or stainless steel A4 quality, with sealing caps made from chloroprene.
Which surface treatments are available?
The angle joints can be manufactured bright or electroplated galvanised white.
What material is used for the sealing caps and why?
The sealing caps are made from chloroprene (CR). This material provides high resistance to mechanical stresses as well as chemicals, oils, and greases, allowing for use in temperature ranges from -30°C to +110°C, and briefly even up to +140°C.
What is the maximum swivel angle of the angle joints similar to DIN 71802 form CS with sealing cap?

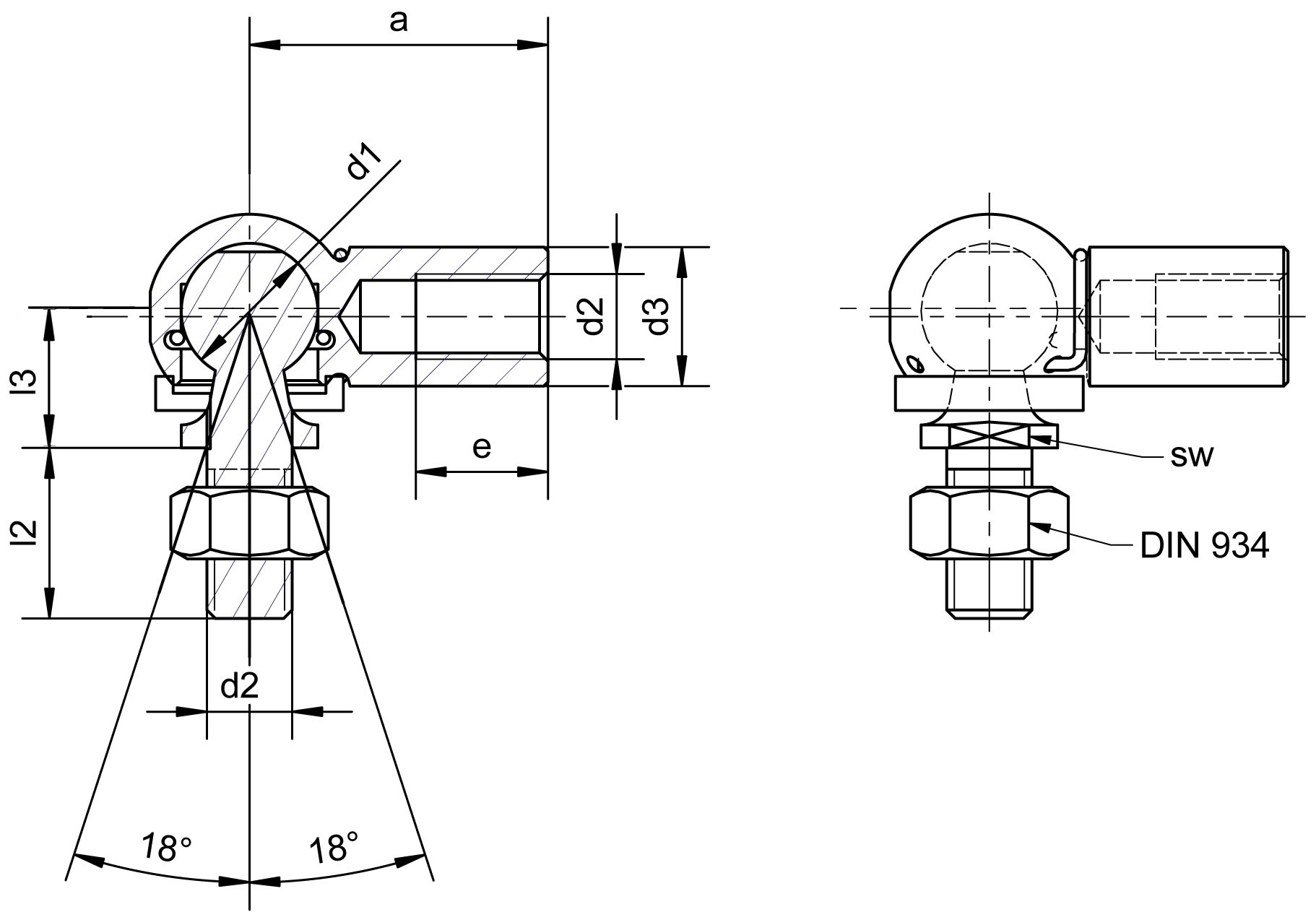

Even for angle joints with sealing cap, the maximum swivel angle of the ball stud in the ball socket is ±18°.
What are the example applications for angle joints with a sealing cap?
Areas of application include, for example, mechanical engineering, vehicle construction, railway industry, agricultural and construction machinery, or fitness and rehabilitation technology.
What safety precautions should be taken when using angle joints with sealing cap?
It is essential to consider the material compatibility of the sealing cap made of chloroprene with the lubricants and operating fluids used, observe the specified load limits, conduct regular inspections, ensure correct installation, avoid overstrain, and use appropriate fasteners.
How is the assembly of an angle joint with a sealing cap carried out?
The assembly is carried out in the following steps: Introduce lubricating grease into the ball socket's cup, press the snap ring into the groove of the ball socket, push the ball stud with sealing cap through the snap ring into the ball socket until it snaps into place, mount the circlip, and optionally screw the hexagon nut onto the thread of the ball stud.
