Clevis joint sim. to DIN 71751 with bolt and retaining rings loose ABS 471-BE 40x84 M42FG Steel br.
loose
1 code for thread: regular thread = no code, regular thread left-handed = LH, fine-pitch thread = FG, fine-pitch thread left-handed = FGLH
2 for semifinished products undercut steel tolerance h11 according to DIN 178, from size 25x50 general tolerances according to DIN ISO 2769-medium
2 for semifinished products undercut steel tolerance h11 according to DIN 178, from size 25x50 general tolerances according to DIN ISO 2769-medium
货号
68 02 0040 7001/003
标识符

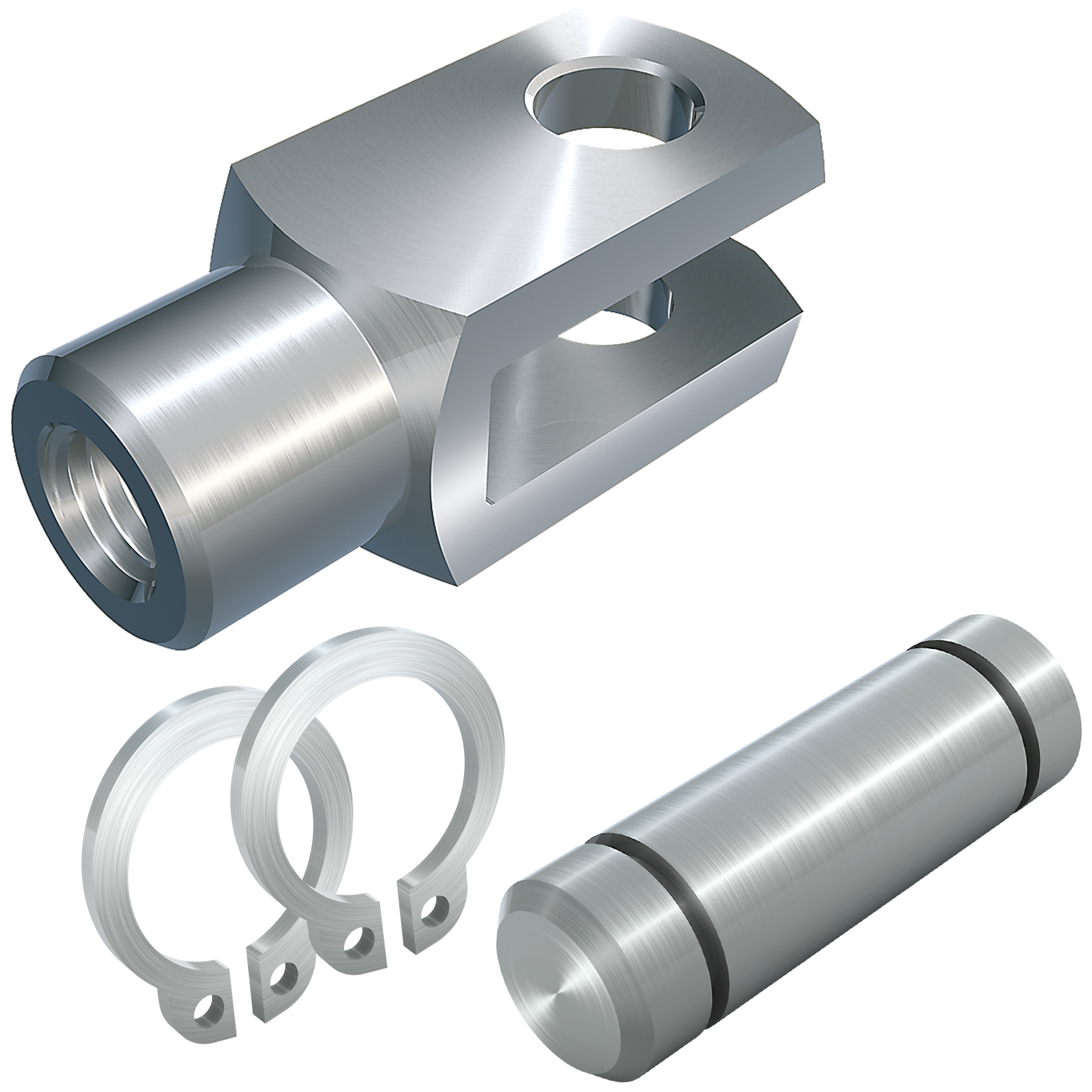

Clevis joint (similar to DIN 71751), with bolt with grooves and retaining rings DIN 471, loose
Größe
ABS 471-BE 40x84 M42FG
材料组
钢
表面
明亮
d1
40
d1 Tolerance
h11
g ±0,5
84
a
94,65
a1² h11
85
a2
85
a2 Tolerance
+0,5 -0,2
b
104,3
b1 B13
40
b2
40
b2 Permissible variation
+0,7 +0,15
d2¹
M42 x 2 FG
螺纹版
右细牙螺纹
d3 ±0,3
70
l1
232
l1 Tolerance
±0,5
l2
168
l2 Permissible variation
±0,4
l3
63,5
l3 Tolerance
±0,3
材料
Undercut steel 1.0715 (11SMn30) / 1.0718 (11SMnPb30)
Mass (kg) per piece
6,673
CETOP
CETOP RP102P
