Clevis joint sim. to DIN 71751 with bolt and locking washer loose ABS 16x64 M16LH Steel galv.
loose
1 code for thread: regular thread = no code, regular thread left-handed = LH, fine-pitch thread = FG, fine-pitch thread left-handed = FGLH
2 for semifinished products undercut steel tolerance h11 according to DIN 178, from size 25x50 general tolerances according to DIN ISO 2769-medium
2 for semifinished products undercut steel tolerance h11 according to DIN 178, from size 25x50 general tolerances according to DIN ISO 2769-medium
货号
61 02 0016 3002/013
标识符

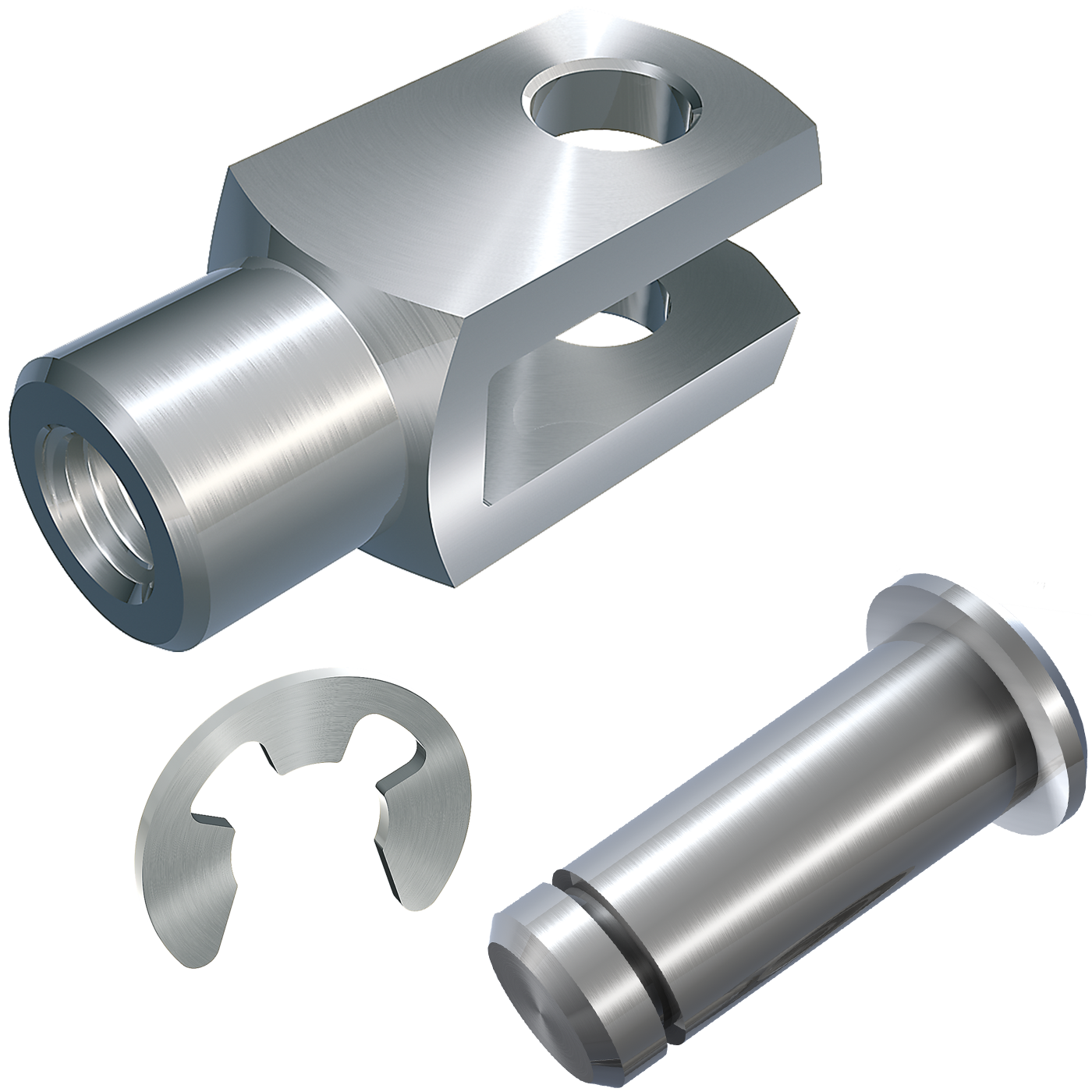

Clevis joint (similar to DIN 71751), with bolt with groove and locking washer DIN 6799, loose
Größe
ABS 16x64 M16LH
材料组
钢
表面
白色电镀镀锌
d1
16
d1 Tolerance
h11
g ±0,5
64
a
38,5
a1² h11
32
a2
32
a2 Tolerance
+0,3 -0,16
b
41,5
b1 B13
16
b2
16
b2 Permissible variation
+0,7 +0,15
d2¹
M16 x 2 LH
螺纹版
常规左螺纹
d3 ±0,3
26
l1
115
l1 Tolerance
±0,5
l2
96
l2 Permissible variation
±0,4
l3
24
l3 Tolerance
±0,3
材料
Undercut steel 1.0715 (11SMn30) / 1.0718 (11SMnPb30)
Mass (kg) per piece
0,475
