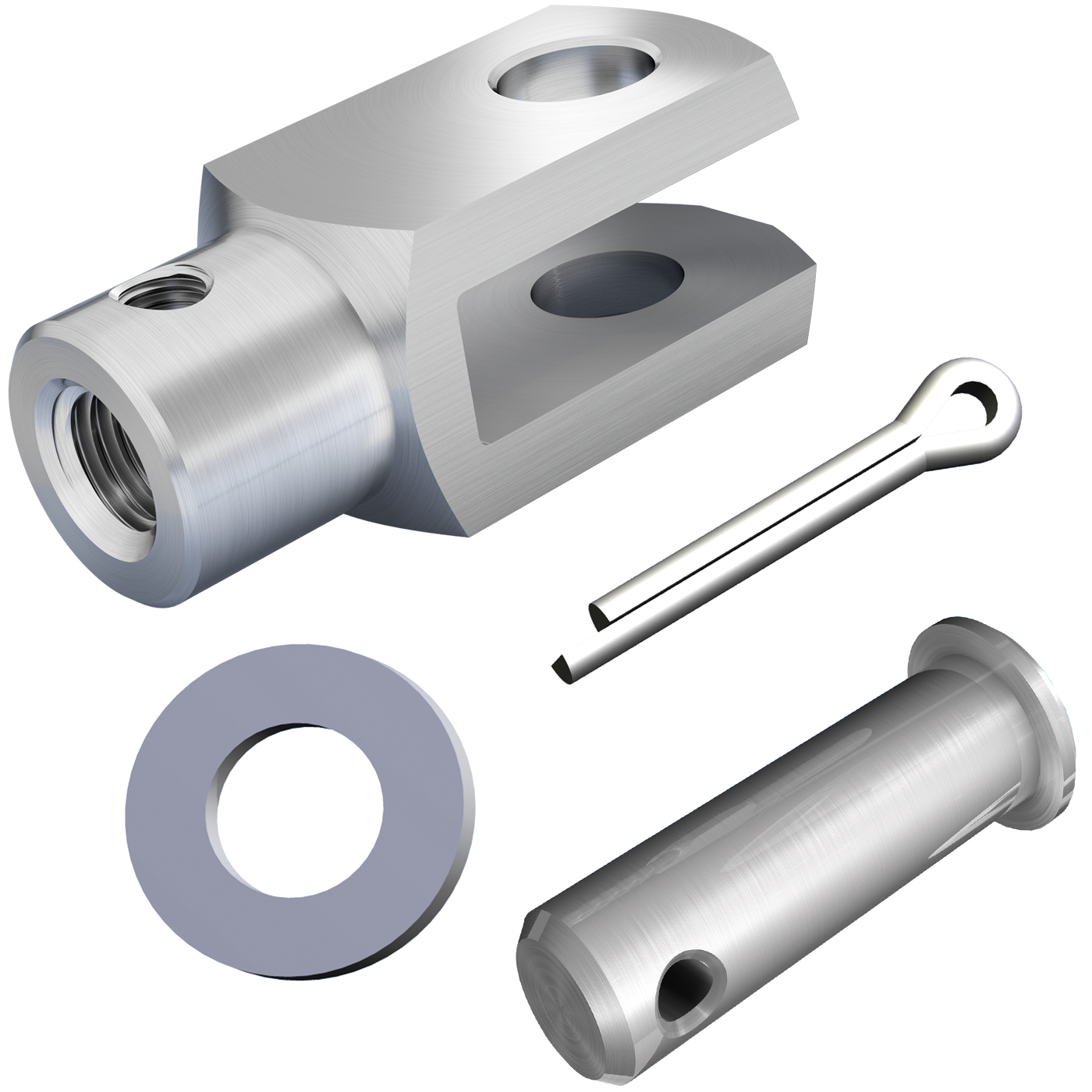

Clevis joint (sim. to DIN 71751 form A) with additional thread loose A 12x24 M12 Steel bright
for anti-rotation mounting, loose
1 code for thread: regular thread = no code
2 for semifinished products undercut steel tolerance h11 according to DIN 178, from size 25x50 general tolerances according to DIN ISO 2769-medium
* without washer DIN 125
2 for semifinished products undercut steel tolerance h11 according to DIN 178, from size 25x50 general tolerances according to DIN ISO 2769-medium
* without washer DIN 125
货号
60 21 0012 6001/003
标识符
Clevis joint (similar to DIN 71751 form A) with additional thread, loose
Größe
A 12x24 M12
材料组
钢
表面
明亮
d1
12
d1 Tolerance
h11
g ±0,5
24
a
35
a1² h11
24
a2
24
a2 Tolerance
+0,3 -0,16
b
38
b1 B13
12
b2
12
b2 Permissible variation
+0,7 +0,15
d2¹
M12 x 1,75
螺纹版
常规右螺纹
d3 ±0,3
20
d4
M6 x 1
l1
62
l1 Tolerance
±0,5
l2
48
l2 Permissible variation
±0,4
l3
18
l3 Tolerance
±0,3
材料
Undercut steel 1.0715 (11SMn30) / 1.0718 (11SMnPb30)
l4 ±0,5
10
Mass (kg) per piece
0,159
