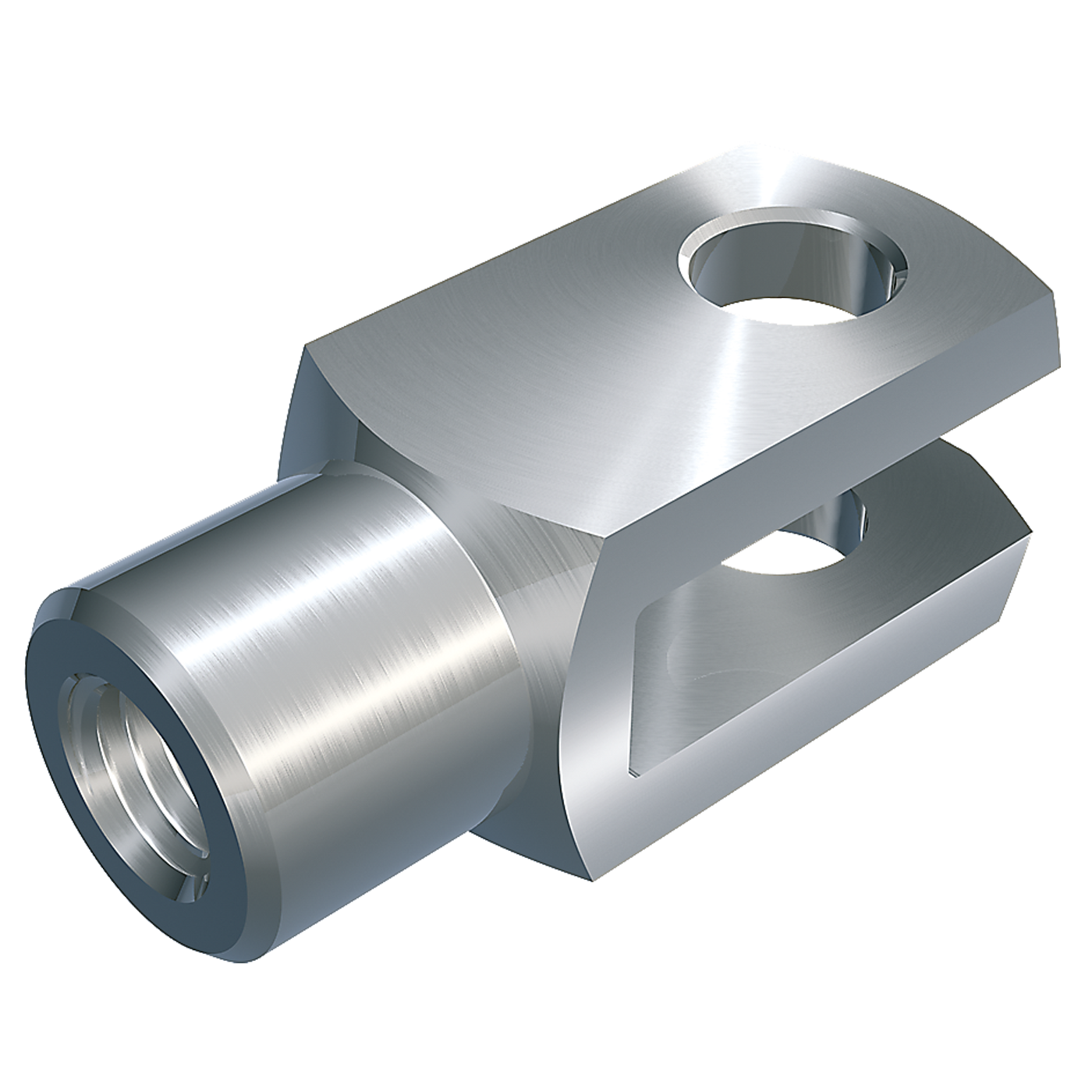

Clevis DIN 71752 G 16x32 M16 Stainless steel
* in this range respect b1
1 code for thread: regular thread = no code, regular thread left-handed = LH, fine-pitch thread = FG, fine-pitch thread left-handed = FGLH
2 for semifinished products undercut steel tolerance h11 according to DIN 178, from size 25x50 general tolerances according to DIN ISO 2769-medium
3 radius or 45° bevelling (of manufacturer's choice)
** similar to DIN 71752
CETOP: These clevises comply in terms of mating dimensions with DIN ISO 8140 and CETOP RP102P (the external shape differs)
1 code for thread: regular thread = no code, regular thread left-handed = LH, fine-pitch thread = FG, fine-pitch thread left-handed = FGLH
2 for semifinished products undercut steel tolerance h11 according to DIN 178, from size 25x50 general tolerances according to DIN ISO 2769-medium
3 radius or 45° bevelling (of manufacturer's choice)
** similar to DIN 71752
CETOP: These clevises comply in terms of mating dimensions with DIN ISO 8140 and CETOP RP102P (the external shape differs)
货号
10 02 4305 1632/000
标识符
Clevis DIN 71752
Größe
G 16x32 M16
材料组
不锈钢
表面
明亮
材料
Stainless steel 1.4305 (X8CrNiS18-9)
d1
16
d1 Tolerance
H9
g ±0,5
32
a1² h11
32
a2
32
a2 Tolerance
+0,3 -0,16
b1 B13
16
b2
16
b2 Permissible variation
+0,7 +0,15
d2¹
M16 x 2
螺纹版
常规右螺纹
d3
26
d3 Tolerance
±0,3
f ±0,2
1
l1
83
l1 Tolerance
±0,5
l2
64
l2 Permissible variation
±0,4
l3
24
l3 Tolerance
±0,2
r³
1
Mass (kg) per piece
0,282
