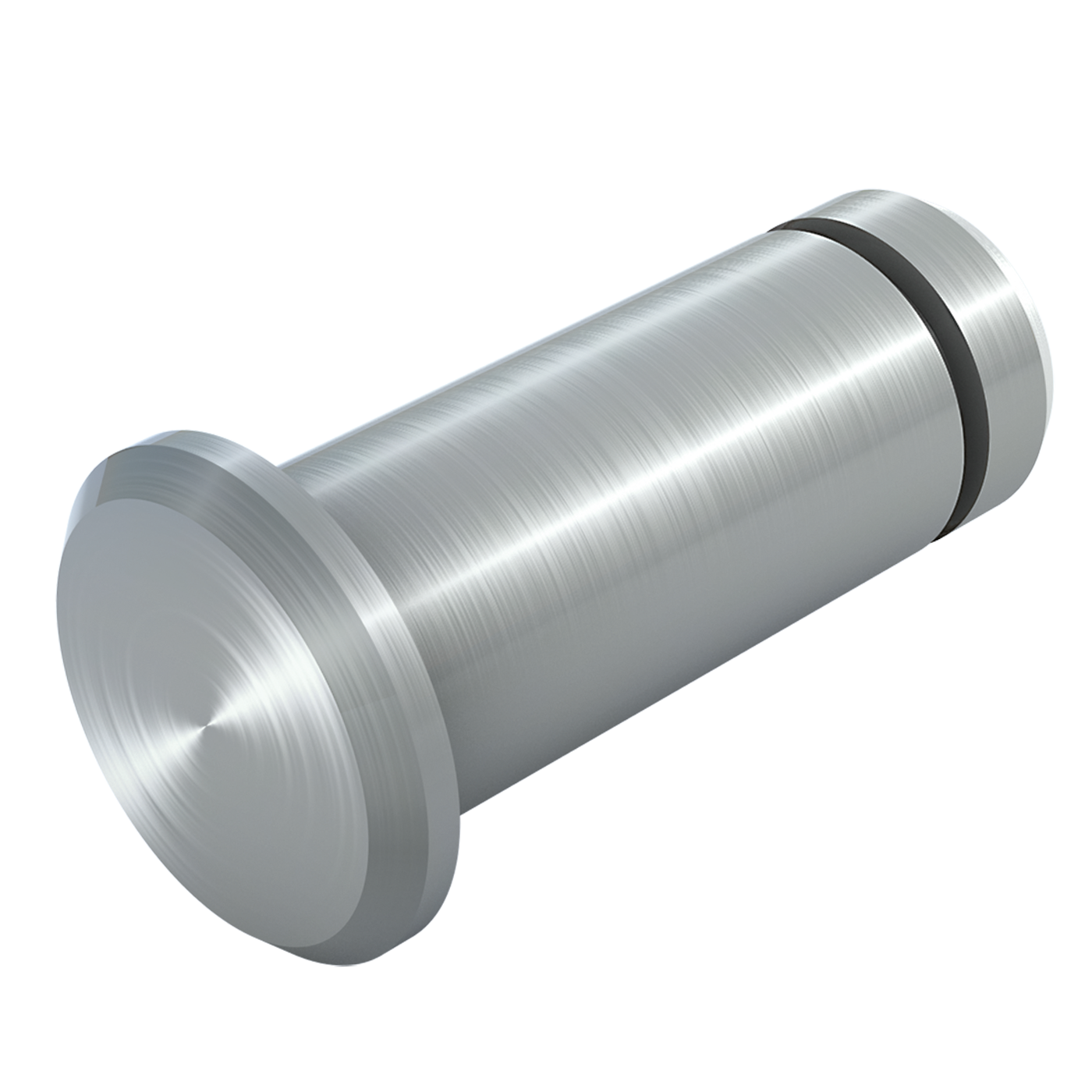

Bolt with groove for DIN 471 BEG 20 x 46 x 40,5 Steel bright
BEG = bolts with groove, lathe work head
* suitable for clevis G 30x54 according to CETOP standard
* suitable for clevis G 30x54 according to CETOP standard
货号
10 79 0000 0020/003
标识符
Bolt with groove for retaining rings DIN 471 (suitable for clevises)
Größe
BEG 20 x 46 x 40,5
材料组
钢
表面
明亮
Suitable retainer DIN 471
20
d1 h11
20
d2
19
d2 Tolerance
h11
d3 h14
26
l1
46
l1 Tolerance
+0,3
l2
40,5
l2 Tolerance
+0,3
k
4
k Tolerance
js15
m
1,3
m Tolerance
H13
z1 ˜
1,5
z2 ˜
2
Masse (kg) per 100 Stück
12,3
材料
Undercut steel 1.0715 (11SMn30) / 1.0718 (11SMnPb30), alternative: hardened
